Shielded RJ48 10P10C Modular Plug

EXW high quality RJ48 10P10C STP Modular Plug are made by imported raw materials.

● Comply with ISO/IEC 11801-1 & ANSI/TIA-568.2-D

● Meet FCC Standard

● Different Gold Thickness Available (50u",30u",15u",6u",3u" , flash)

● Mating Cycles: Up to 1200 Times

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Cable Wire Gauge : 24AWG to 26AWG

● UL / POE+ / CE Certified & Comply with RoHS & REACH

● With Special Designed Boot

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality. We have complete production lines with flexible lead-time.

Welcome OEM/ODM. EXW is Your Best Choice!

Standards & Features

Features:

● Comply with ANSI/TIA-568.2-D & ISO/IEC 11801
● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
● Comply with requirements of ANSI/TIA-1096-A (FCC Part 68)
● Comply with IEC 60603-7 series for RJ45 8-way connector
● Comply with UL 1863

Product Description

Part No. & Description
P00RY50V2S  : RJ48 10P10C STP modular plug designed for Stranded & Solid STP Lan Cable.
Quality Assurance
Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.
Certificate
UL/4PPoE Certified & Comply with RoHS & REACH
Application
Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 100MHz.
Different Color Available
Standard Package Rate

Spec.

Packing Rate (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

10P10CSTP Plug

10,000

25.45

27.75

1,000pcs/blank bag 2 inner boxes/Carton

516*362*320MM(0.06CBM)

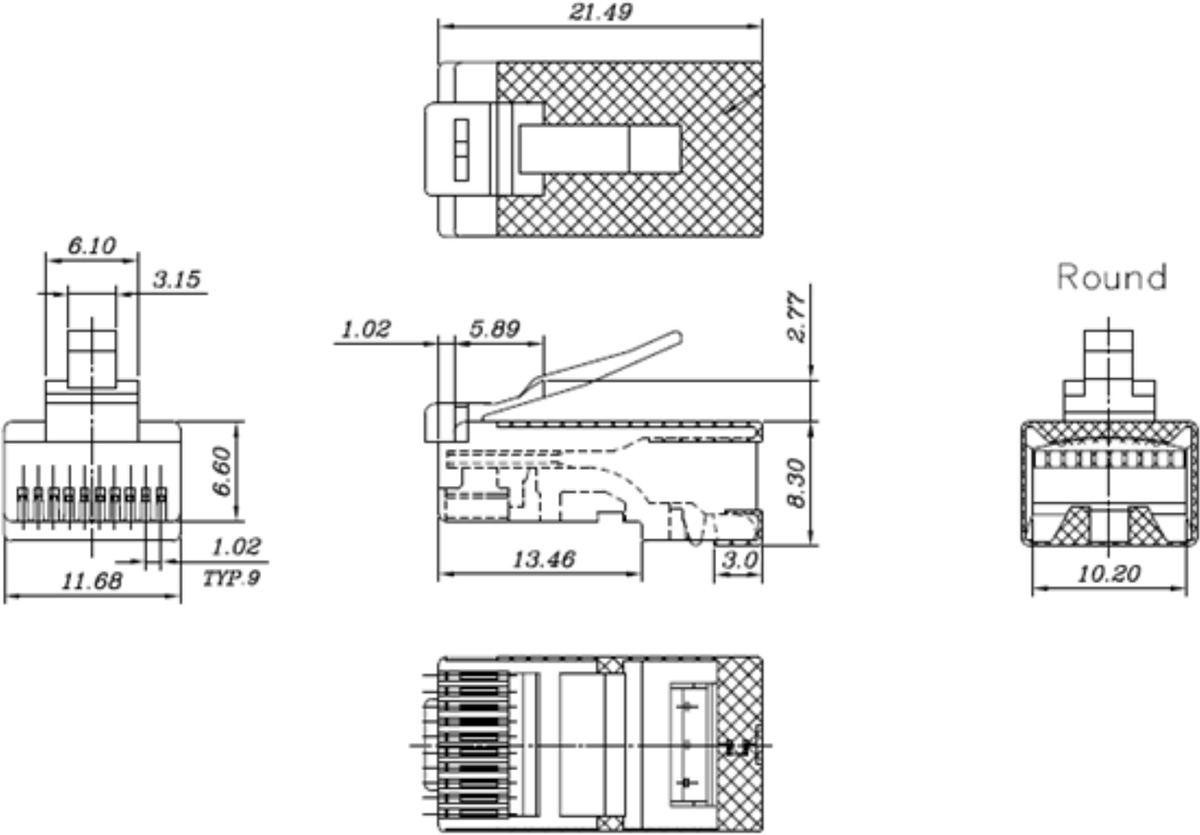

Product Constructure



 •Electrical Characteristics



UL Application:  250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:   500 Volts AC
Insulation Resistance: 100MΩ
Termination: Resistance 20MΩ max after environmental testing



 •Mechanical characteristics



Insertion Life:  750 mating cycles
Installation Temperature : 0/50℃
Operation & Storage Temperature : -20/60℃
Cable to Plug Tensile Strength: 20pound(min)
Pulling Force:    10N(max)



 •Component



Housing: Polycarbonate, UL94V-2 or UL94V-0
Gold Plating: 50u", 30u", 15u", 6u", 3u" or flash
Contact Blade: Copper Alloy
Contact: Stradded or Solid Wire, from 24 AWG to 26AWG
Color:  Transparent or other color

OEM/ODM Case

With more than 35 years history and profession R & D team,
EXW has rich experiences in producing OEM/ODM cases.
•  Customized Logo on  the Latch of Plug
•  Special Design on Package & Label
•  Different Package Rate Available
•  Different Color Available

Different Strain Reliefs fit with our Modular Plug.
   We also can design it according to our customer's specific demand!
