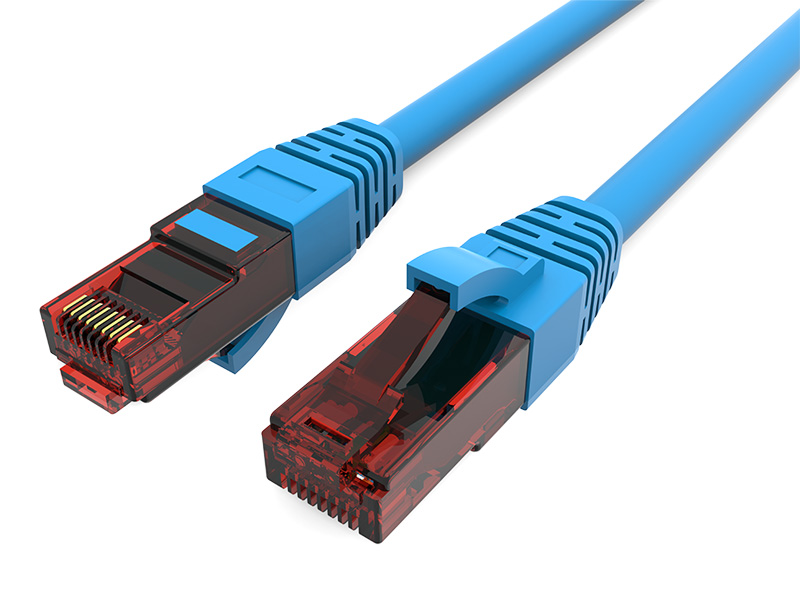

Unshielded U/UTP CAT.6 Antibacterial Patch Cord

We developed the antibacterial patch cord. The cable & plug & mold with special materials. The antimicrobial activity complies with ISO 22196:2011. Especially this antibacterial patch cord is suitable for hospital & hotel & etc.

● Antimicrobial activity complies with ISO 22196:2011

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Cat.6 Patch Cord with 100% Component Test by DSX-8000 & DSX-5000

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

Keep Healthy & Safe!

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No. & Description

6UTXXAntibacterial : Cat.6 U/UTP Stranded Round Antibacterial Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6 Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6 U/UTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	250	7.28	8.28	1pc/blank bag with label	400375290MM(0.0435CBM)
1	150	7.75	8.75
2	100	8.91	9.91
3	80	9.86	10.86
5	50	10.28	11.28
10	35	13.94	14.94
15	25	14.65	15.65
20	20	15.67	16.67

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

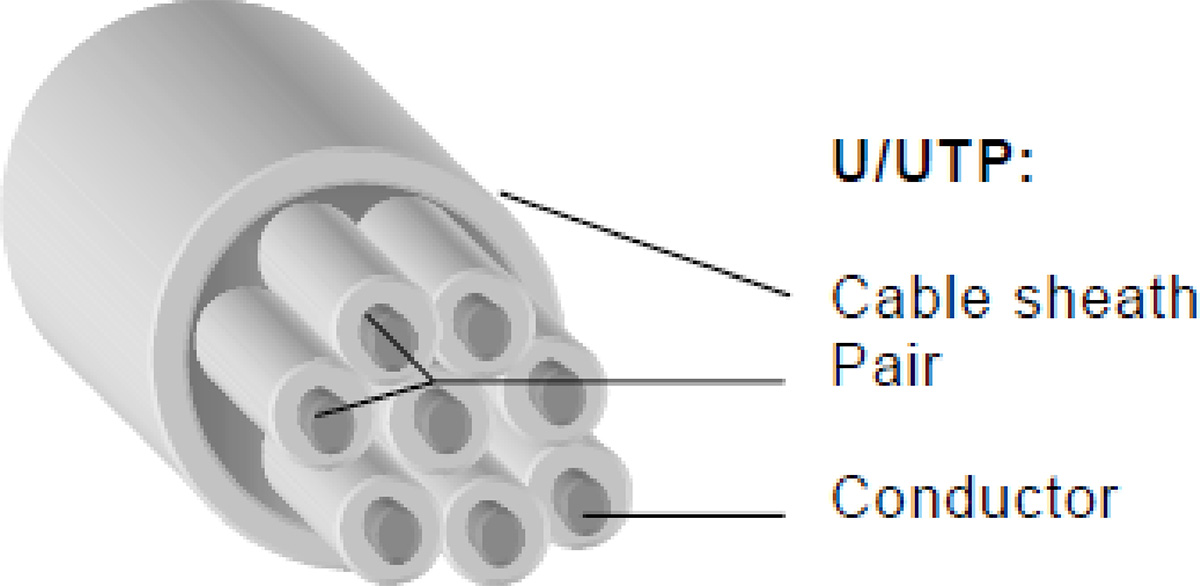

• Component

Conductor:	AWG 24 (Stranded Copper 7x 0.2mm),4-Pair ,8C
Insulators:	PE
Insulation Diameter:	0.97 ± 0.05mm
Nom. Thickness:	0.18mm
Separator:	PE Cross
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.0 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
