Shielded S/FTP CAT.6A EASY Patch Cord

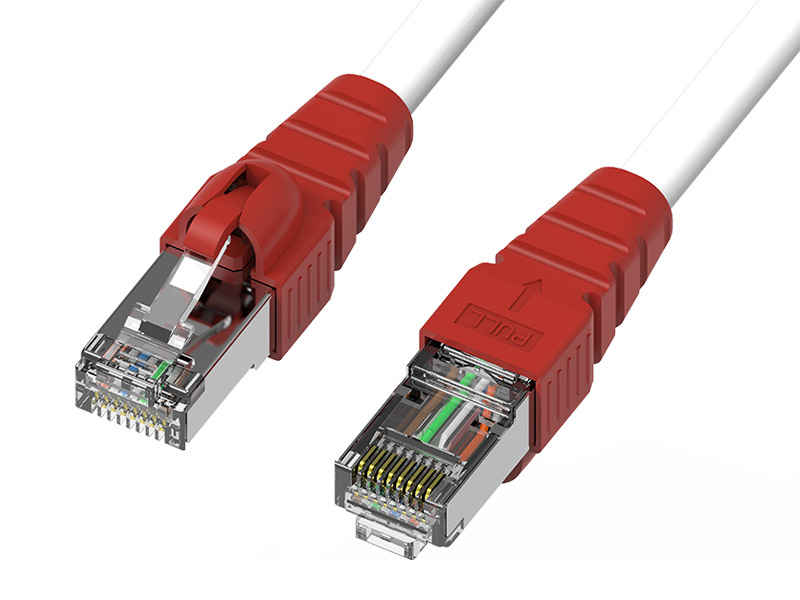

EXW Patented EASY PATCH CORD--Cat.6A S/FTP. The boot of this patch cord has a push-pull design. When pull the boot, the hook will press the latch down, and then patch cord can be put out easily. Especially this easy patch cord is suitable for high density panel. We also design a special hand tool for this product.

● Follow ANSI/TIA-568.2-D & ISO/IEC 11801

● Easy & Fast Plug-in & Pull-out

● Easy Solution for Compact Patch Panel

● With Special Tool

● Save Space & High Density Compatible

● Patented in Australia, Germany, Japan, USA and etc.

● Cat.6A / Cat.6 EASY Patch Cord Available

● Bare Copper with More Stable Performance

● 50U" Gold Plating RJ45 Plugs with Patented Design

● Various Colors & Molding Available

● Mating Cycles: Up to 1200 Times

● Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Operation Temperature Range:-10~60 ℃

● UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH

EXW EASY Patch Cord--Patented in USA, Germany, Australia, Japan & etc.

EXW Patch Cords Meet the Following Standards:

● ISO/IEC 11801:2011

● ANSI/TIA-568.2-D

● ANSI/TIA-1096-A (FCC Part 68)

● EN50173-1:2011

● UL 444

● 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

• EXW Part No. & Description

6ASSXXEASY : Cat.6A S/FTP Stranded Round EASY Patch Cord, Molded, PVC/LSOH/TPE/PUR

• Quality Assurance

100% Cat.6A Component Test (provide original test data to our customer)

• Certificate

UL/ETL/DELTA/4PPoE/CE Certified & Comply with RoHS & REACH

• Application

* Ethernet Networking

* Computer Networking Project

* Audio & Data Transmission

* Digital Networking

* Broadband Networking Communication

• EXW Standard Color Code

• Standard Package Rate

Length(M)	Cat.6A S/FTP (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
0.5	200	6.67	7.67	1pc/blank bag with label	400375290MM(0.0435CBM)
1	120	6.59	7.59
2	100	9.34	10.34
3	80	10.20	11.20
5	50	10.06	11.06
10	25	10.04	11.04
15	25	14.46	15.46
20	18	13.62	14.62

Wire Colour Code

white - blue/blue

white - orange/orange

white - green/green

white - brown/brown

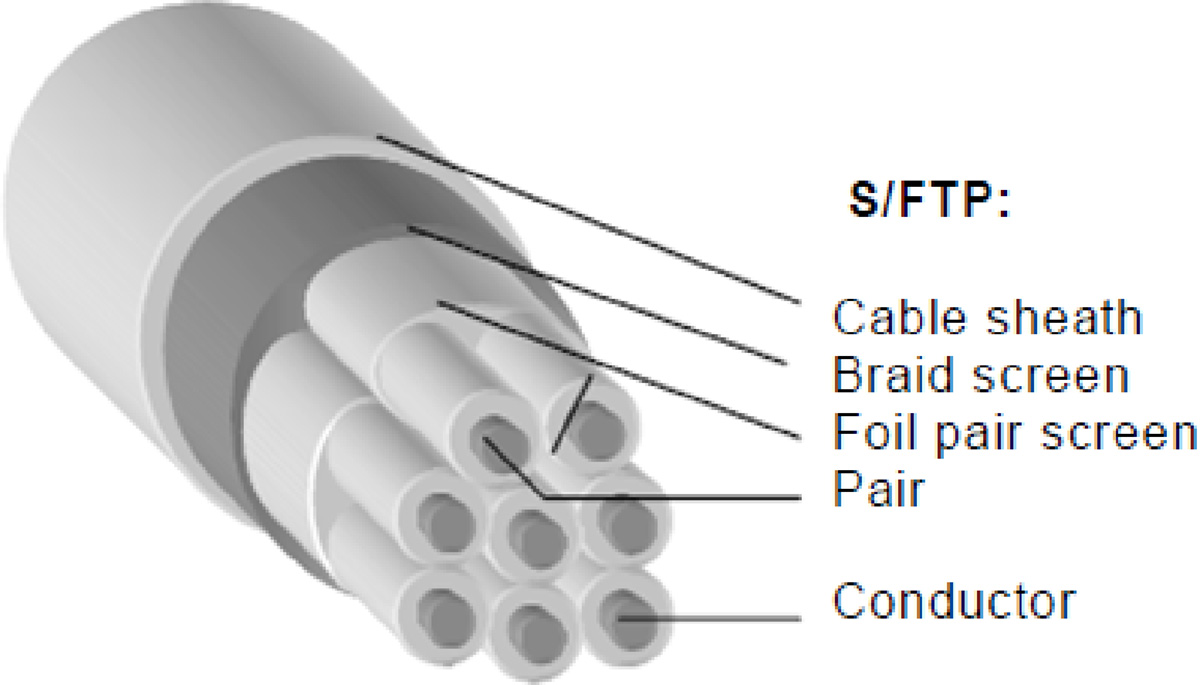

• Component

Conductor:	AWG 26 (Stranded Copper 7x 0.16mm),4-Pair ,8C
Insulators:	PE
Insulators Diameter:	1.02 ± 0.05mm
Braid Shield (Tinned Copper):	16/5/0.10T
Coverage:	≥40%
Jacket:	PVC/LSOH/TPE/PUR
Jacket Diameter:	6.2 ± 0.2mm

• Electrical Characteristics

NEXT Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement:	1dB margin compared to ANSI/TIA-568.2-D
Current Rating:	1.5 A
Insulation Resistance:	100 MΩ min
Contact Resistance:	20 mΩ max
Dielectric Strength:	500 VAC (rms)
Voltage:	72 VDC max

• Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature:	0/50℃
Operation & Storage Temperature:	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)
