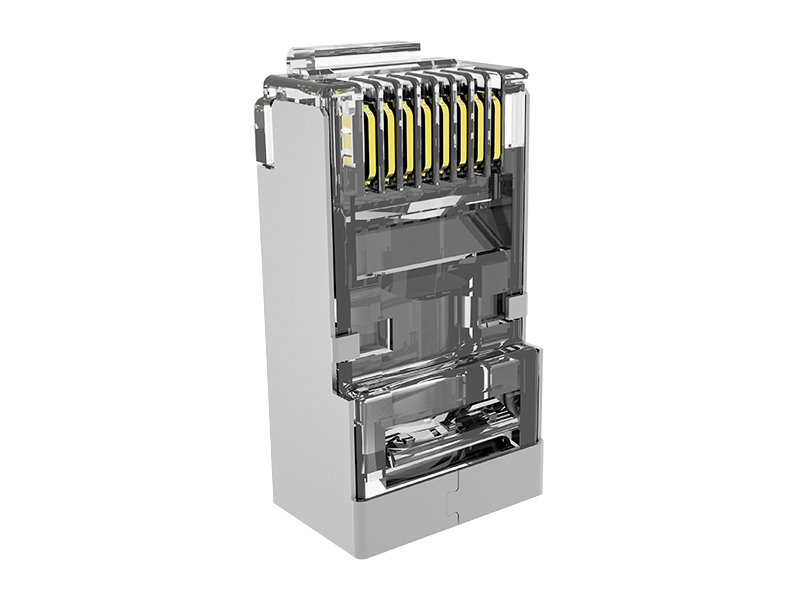

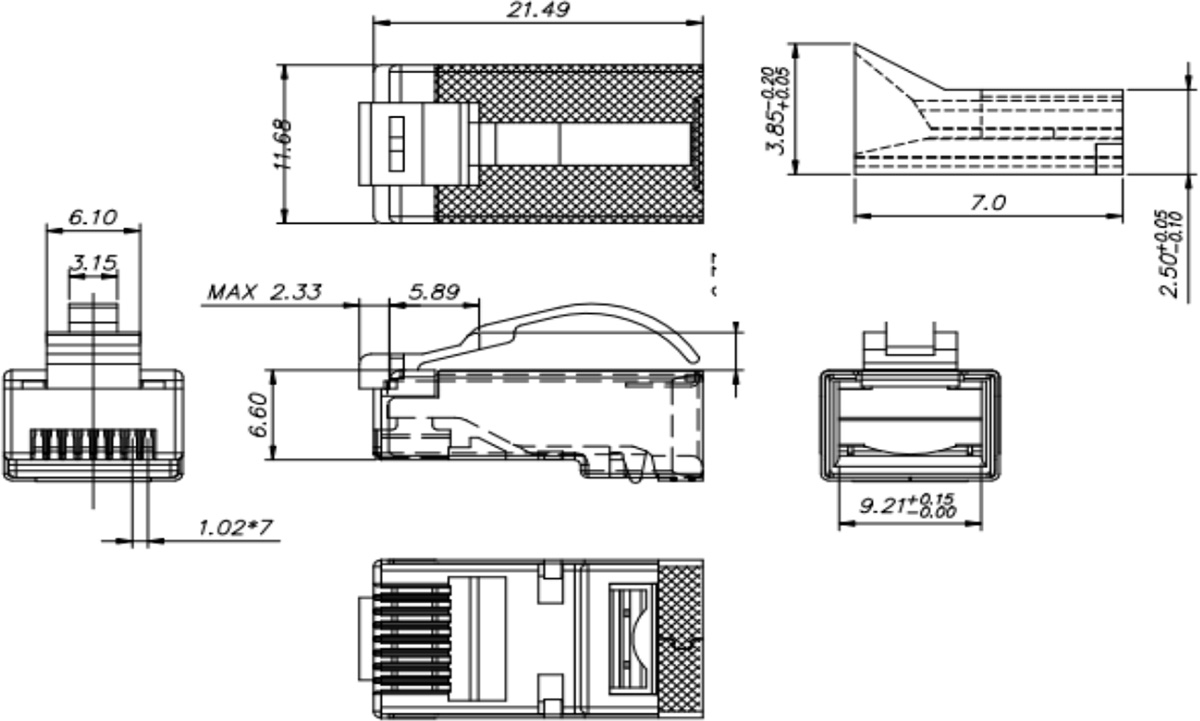

Shielded Cat.6A Arch Latch Connector

EXW high quality Cat.6A RJ45 8P8C STP Arch Modular Plugs are made by imported raw materials.

● Comply with ISO/IEC 11801-1 & ANSI/TIA-568.2-D

● Follow IEC 60603-7 series for RJ45 8-Way Connector

● Meet FCC Standard

● CAT.6A / CAT.6 / CAT.5E Arch Plug Available

● Different Gold Thickness Available (50u",30u",15u",6u",3u" , flash)

● Mating Cycles: Up to 1200 Times

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Cable Wire Gauge : 24AWG to 26AWG

● UL / POE++/ CE Certified & Comply with RoHS & REACH

● With Special Designed Boot

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality. We have complete production lines with flexible lead-time.

Welcome OEM/ODM. EXW is Your Best Choice!

Features:

● Comply with ANSI/TIA-568.2-D & ISO/IEC 11801

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● Comply with requirements of ANSI/TIA-1096-A (FCC Part 68)

● Comply with IEC 60603-7 series for RJ45 8-way connector

● Comply with UL 1863

• Part No. & Description

C6R5Z50V2IL-3R : Cat.6A UTP Arch modular plug designed for Cat.6A Solid & Stranded UTP lan cable.

C6R5Z50V2SIL-3R : Cat.6A STP Arch modular plug designed for Cat.6A Solid & Stranded UTP lan cable.

• Quality Assurance

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.

• Certificate

UL/4PPoE Certified & Comply with RoHS & REACH

• Application

Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 500MHz.

• Different Color Available

• Standard Package Rate

Spec.	Packing Rate (pcs)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
Cat.6A STP Plug	10,000	23.50	24.80	1,000pcs/blank bag 2 inner boxes/Carton	516362320MM(0.06CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing.

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	50u", 30u", 15u", 6u", 3u" or flash
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color
