Cat.8 STP 5 Angle Field Termination Plug

EXW high quality Cat.8 STP 5 Angle fielded termination plug. Support bandwiths of 2000MHz at Channel length up to 30 meters.

● Comply with ANSI/TIA-568.2-D & ISO/IEC 11801-1, Ed. 1.0

● Follow IEC 60603-7 series for RJ45 8-Way Connector

● Support 40G BASE-T

● Cable Wire Gauge: 22 ~ 26AWG

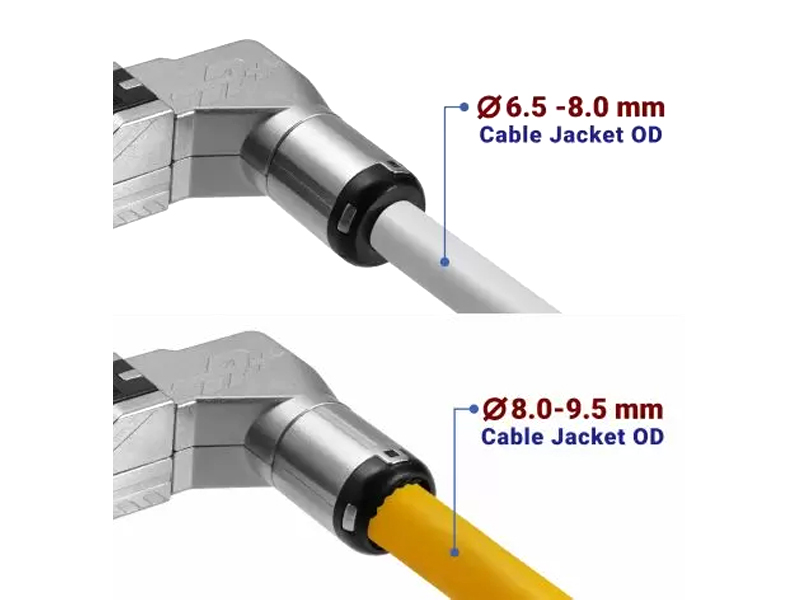

● Cable Outer Diameter:6.5 ~ 9.5 mm

● 50U" Gold Plating

● Mating Cycles: Up to 1200 Times

● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

● GHMT / UL / POE+ / CE Certified & Comply with RoHS & REACH Certified by GHMT.

Features:

• Comply with ANSI/TIA-568.2-D & ISO/IEC 11801
• Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
• Support 40G BASE-T
• Easy & Quick Installation

• Part No. & Description

C8FTP Cat.8 STP 5 Angle field termination modular plug designed for Cat.8 STP lan cable

• Quality Assurance

Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.

• Certificate

UL/4PPoE Certified & Comply with RoHS & REACH

• Application

Support bandwiths of 2000MHz at Channel length up to 30 meters.

• Standard Package Rate

Spec.	Packing Rate (PCS)	N.W(KG)	G.W(KG)	Packing Method	Carton Size
Cat.8 Plug	1,000	25.10	26.20	1pc/blank bag 100pcs/bigger Bag	400375290MM(0.0435CBM)

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing.

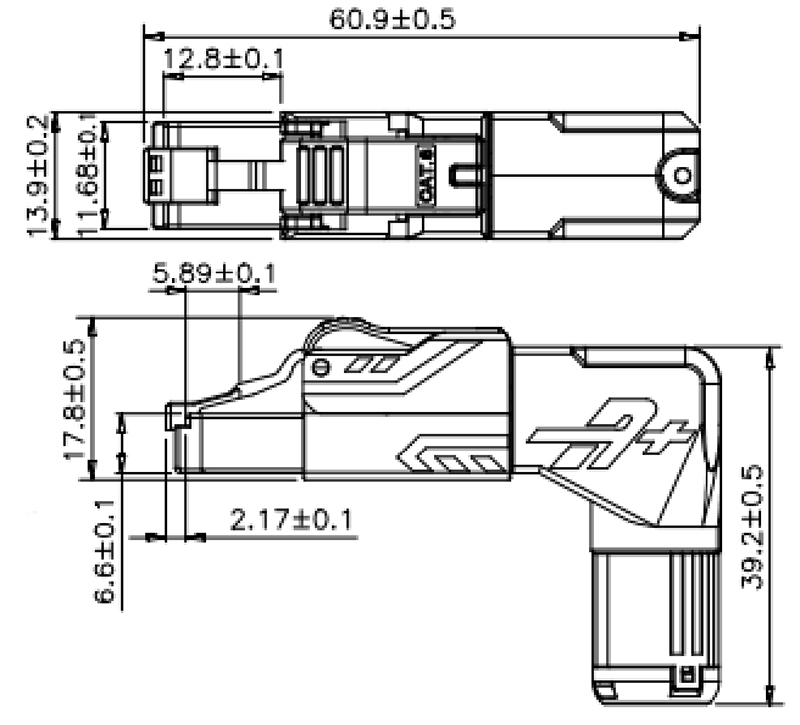

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50℃
Operation & Storage Temperature :	-20/60℃
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

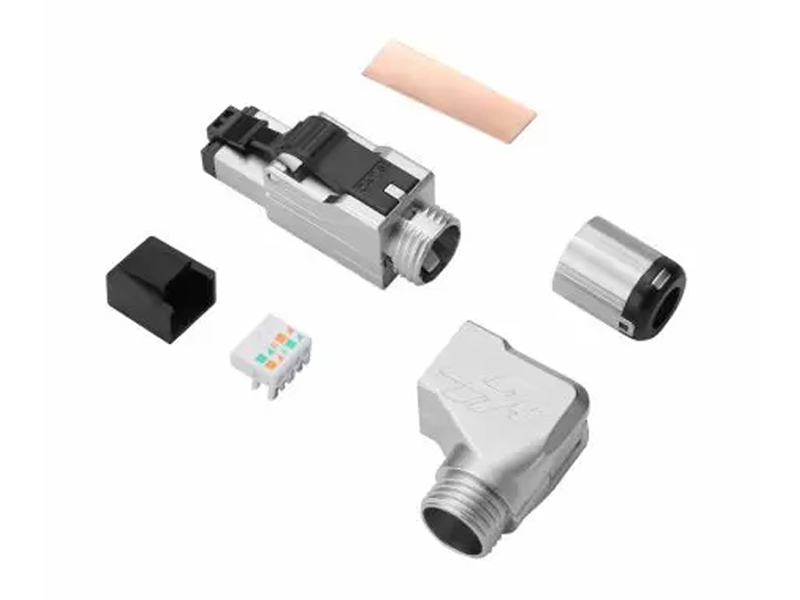

•Component

1. Extractor :	PC, UL 94V-2, options color
2. Housing :	Zinc die-Casting with nickel plated
3. RJ45 plug :
3-1. Housing :	PC, UL 94V-2, black color.
3-2. Contact material :	Phosphor bronze with 100 micro-inch nickel plated
3-3. Contact finish :	Min. 50 micro-inch gold plated on surface contact area
4. Cover :	Zinc die-casting with nickel plated
5. Wire management bar :	PC + glass fiber, white color, UL94-V2
6. IDC :
6-1. Housing :	PC, white color, UL94-V2
6-2 Terminal :	Titanium copper with tin plated
7. Grounding contact :	Zinc die-casting with nickel plated
8. Boot :
8-1. Housing :	Zinc die-casting with nickel plated
8-2. SR :	PC, UL 94V-2, black color
8-3 CAP :	PC, UL 94V-2, black color
9. PCB, UL 94-V0
10. Copper foil tape
